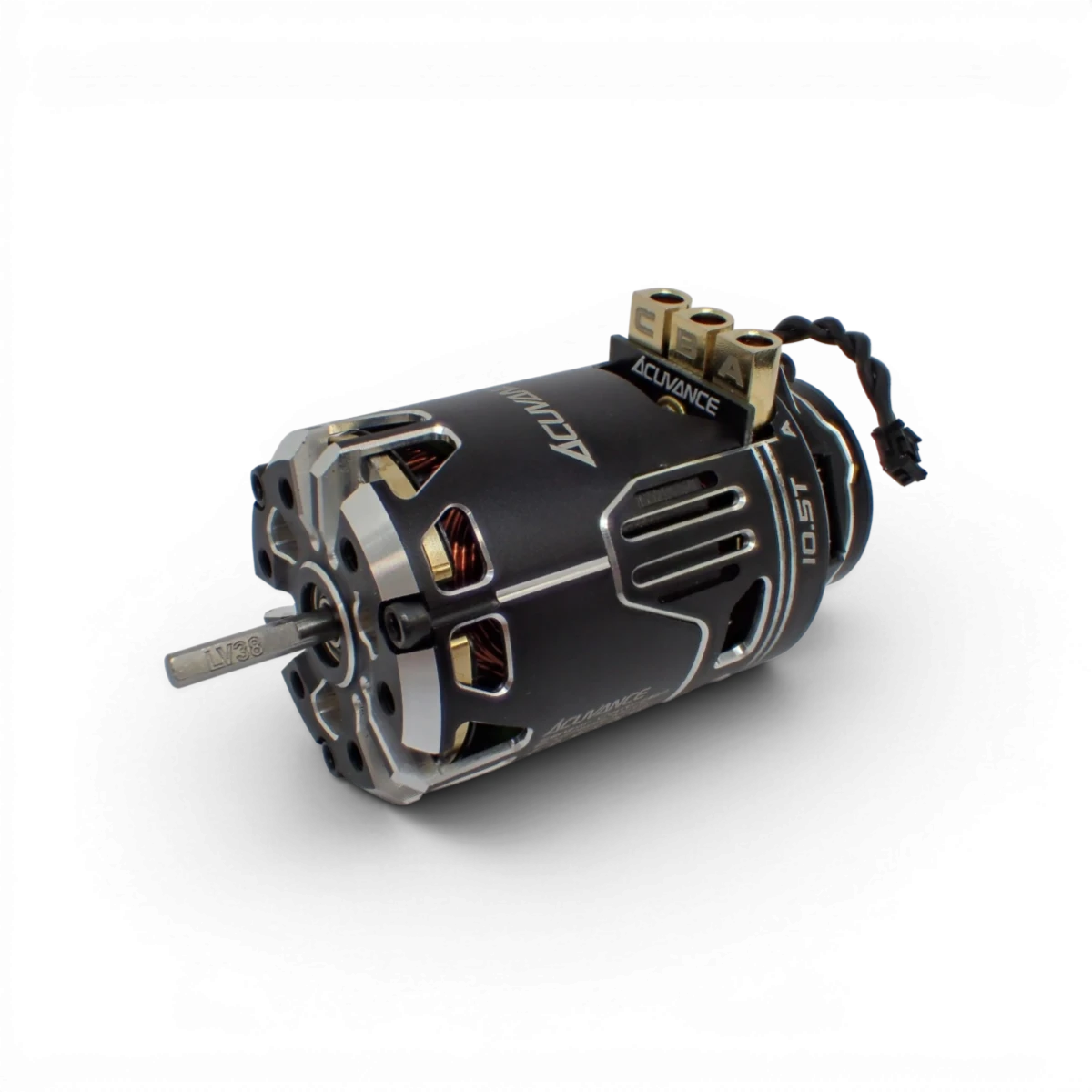

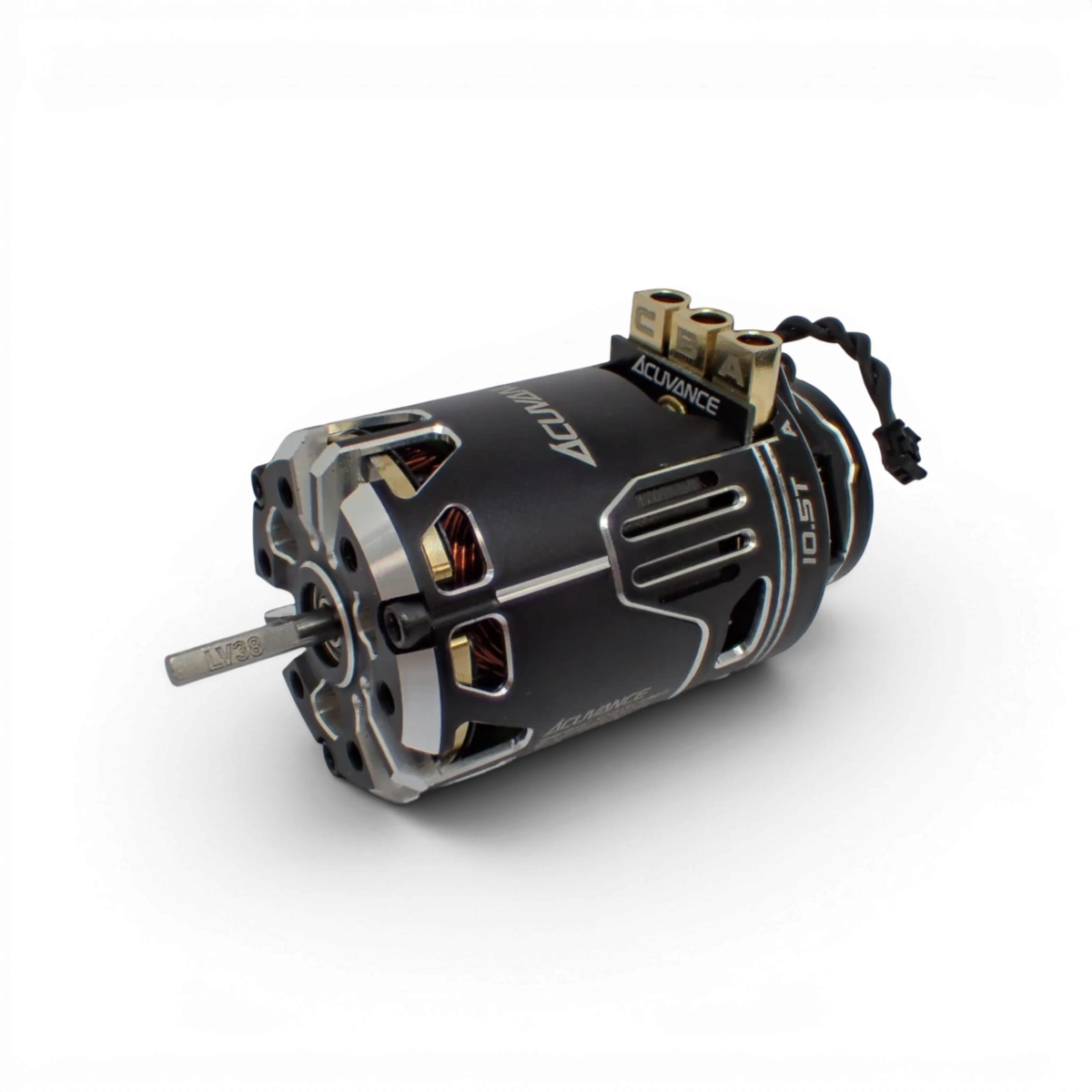

Fledge 10.5T integrated fan Brushless Motor

• - the engine
• - 3.5mm female sockets already welded
• - 3.5mm male plugs

Compatible with all the variator brushless

Description translated from Google Translation● Equipped with, the first revolutionary system of industry which achieves forced air cooling inside the engine

A revolutionary structure which is approaching by using a dedicated fan mounted on the end bell.

The air holes are designed at different points inside the engine to maximize the air cooling effect.

It has a large effect on the reduction of various negative factors (minimum error in the sensor of the sensor / increased resistance of the coil / damage to the rotor, etc.) due to the heat of the engine.

In addition, the dedicated fan can be fixed and freely detached depending on the vehicle assembly space and the driving environment.

In addition, our new E.S.C. without brooms has two dedicated fan terminals.

Even when used jointly with the dedicated cooling fan of the Xarvis /, it fully demonstrates its original air cooling performance.

● Structure with high thermal dissipation plate

Particular attention is paid to internal vibrations that occur when the engine is driven and also affect the effectiveness of rotation.

A high rigidity and special alloy plate is mounted on the upper side to the interior of the case.

Agile has a proven porous structure added to the plate which has high thermal dissipation characteristics, which makes it a high quality accent which uses the design of the intrepid and sharp body.

●

Integrated power supply plate which connects the engine connector and the coil (a first in the industry).

The power transmission performance has been considerably improved, as well as the reduction of vibrations.

In addition to eliminating the connector assembly process, it eliminates welding contacts which can cause electrical resistance.

● Reduction of the engine weight

While attention has been focused on reducing the weight of the machine, while carrying out the anti-vibration structure, a significant reduction in weight of 12 g ● supports the exclusive XARVIS XX flod / agile program

Compatible with the program "Couple level / end of torque" installed in our E.S.C. without brooms.

This program is exclusively intended for users of this product and agile, which can modify the level of engine torque according to the conditions of the road and the vehicle.
Specifications / specifications

10.5 t

Input voltage (V) 4.8-11.1 V

KV (rpm / v) * 3530

Electric consumption (W) * 250

Efficiency (%) * 92

Rotor Equipped Standard Fritté 12.3 mm (neodymium magnet) LV38

Star winding coil winding method
