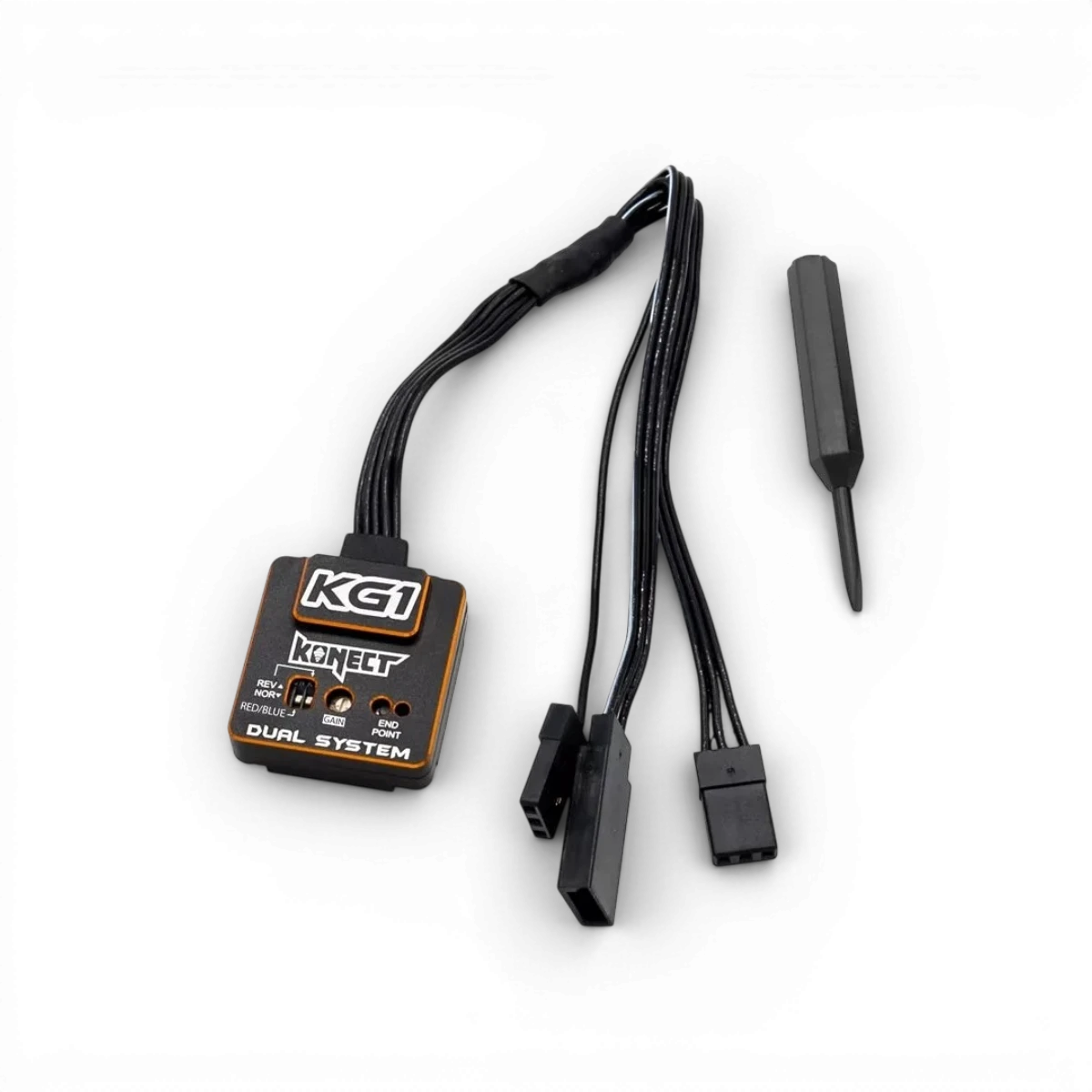

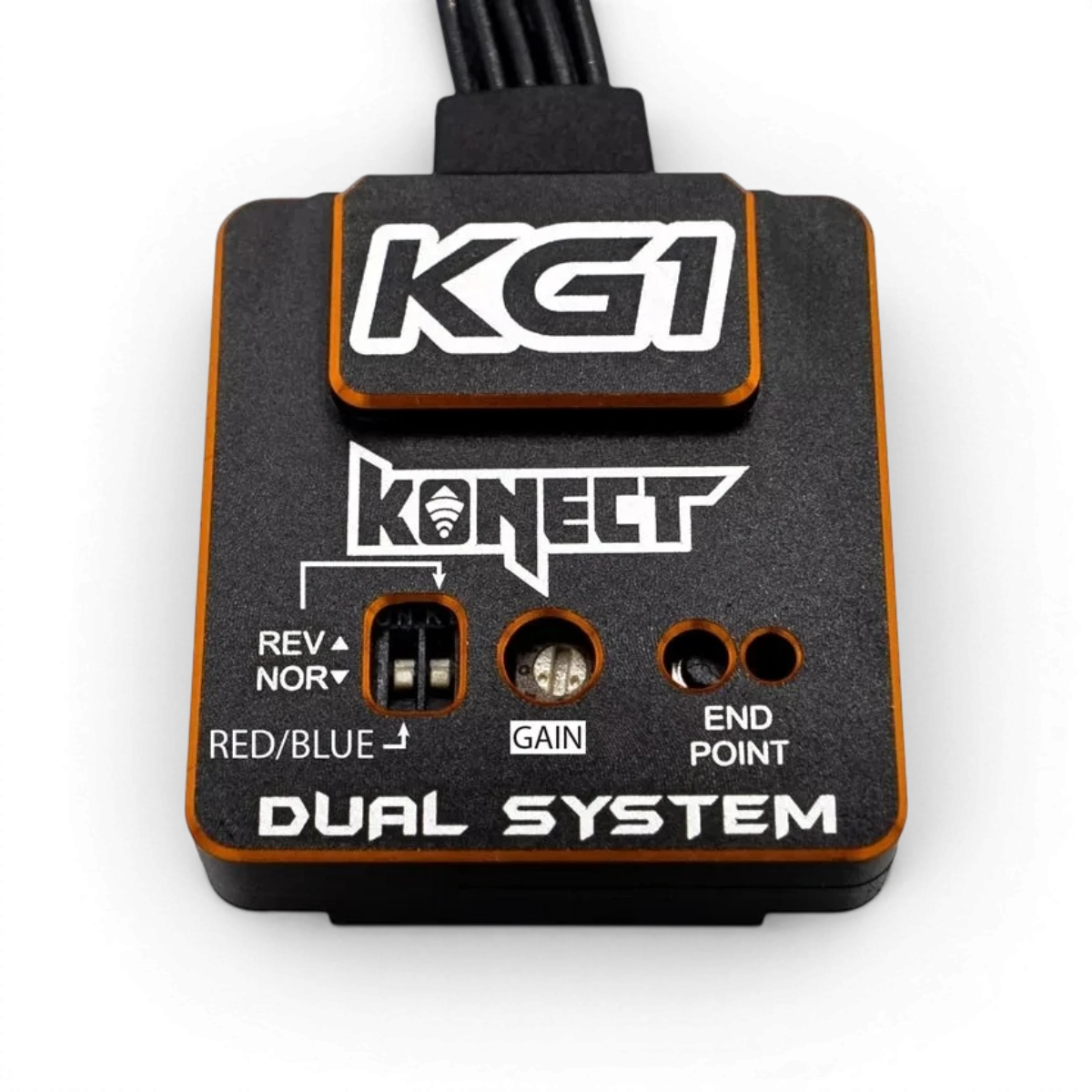

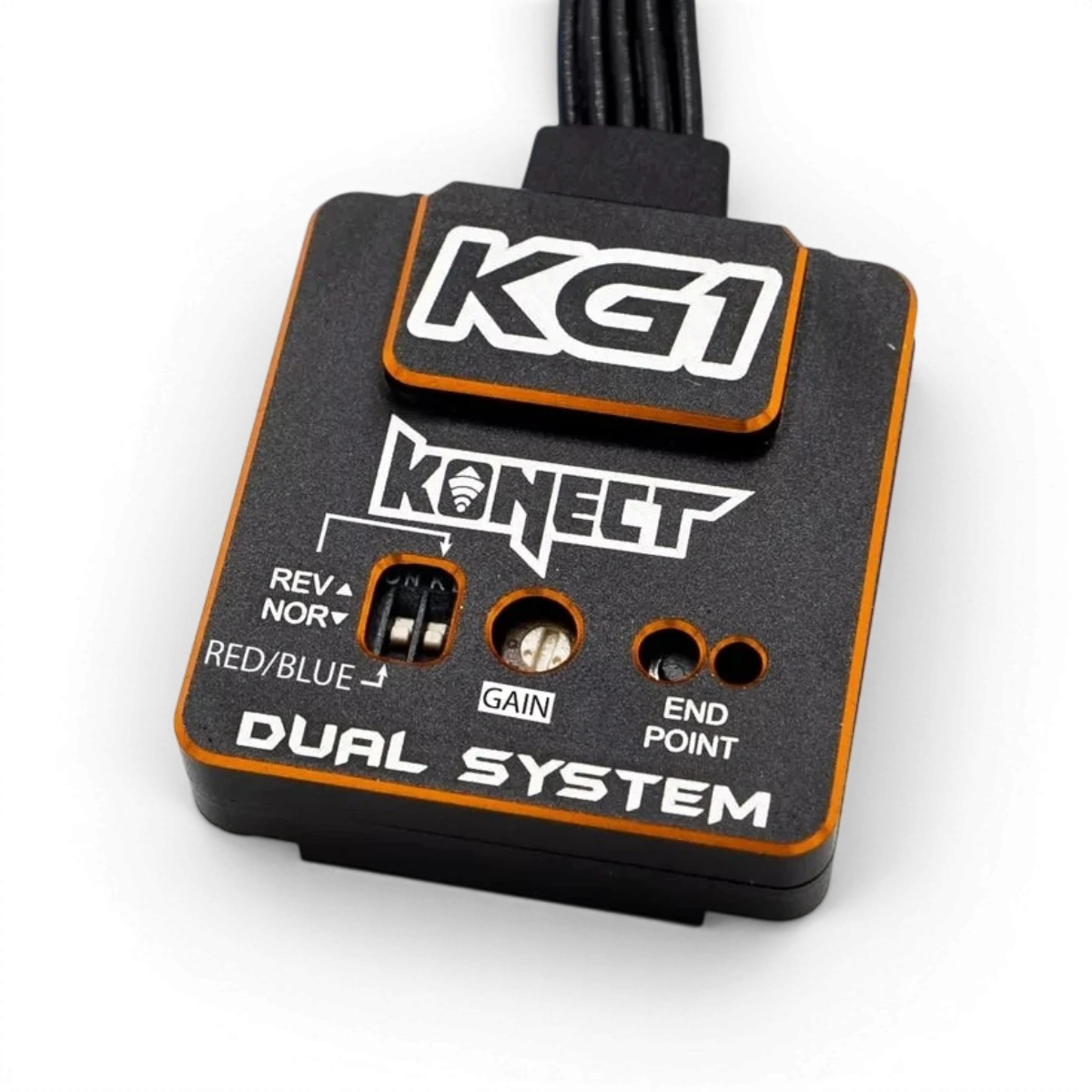

Konect KG1 Dual System Drift Gyro

The Gyro Drift KG1 Dual System of the brand Konect is an electronic component designed for RC drifting, allowing precise control of the steering angle and increased stability of the front axle. It is designed to easily integrate into 1/10 chassis dedicated to drifting, with a compact format and advanced features (two operating modes, servo inversion, gain adjustment).

• Operating voltage: 4.8 – 7.4V

• Operating current: 20mA @ 6V

• Supported servo pulse width: 1520 µs (50 Hz & 333 Hz)

• Maximum angular speed: ± 5000°/s

• Dimensions: 25.6 × 24.5 × 8mm

• Weight: 12g

• Mode: dual (two modes selectable via switch)

• 1 × Gyro Konect KG1 Dual System KN-GYRO-KG1

The KG1 gyro is particularly useful for improving responsiveness of the front axle and the stability in drift. Well placed and adjusted, it reduces chatter and improves corner entry. Recommended mounting on 1/10 drift chassis with clean installation near the steering box. Be sure to configure the gain correctly and check the servo reversal for optimal performance.
