TK type arm shim #8 (64.4-67.6mm) chamfered

The adjustment sheet

The adjustment sheet #2

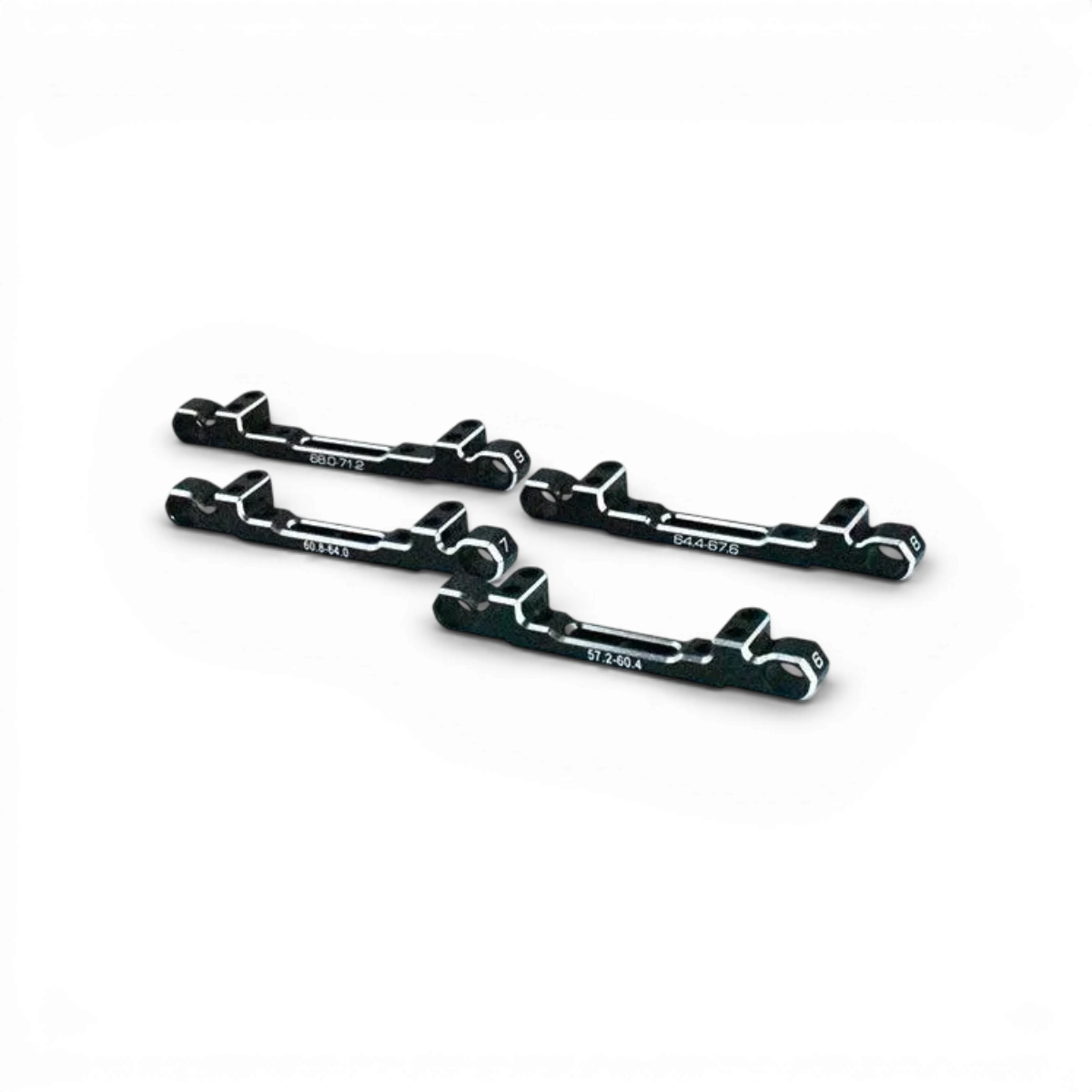

• RD-301-6T : Aluminum suspension support type TK #6 (57.2 ～ 60.4mm)

• RD-301-7T : Aluminum suspension support type TK #7 (60.8 ～ 64.0mm)

• RD-301-8T : Aluminum suspension support type TK #8 (64.4 ～ 67.6mm)

• RD-301-9T : Aluminum suspension support type TK #9 (68.0 ～ 71.2mm)

• 1 aluminum hold

• RD-300BS

• In the first table: the 1st line indicates the difference in length in 2 holds to obtain the degree value. Line 2: front - line 3: chassis back

The adjustment sheet

• In the second table: Depending on the hold you have, you can choose the length necessary for the pinch value you want by crossing the information in Table 1.

The adjustment sheet #2

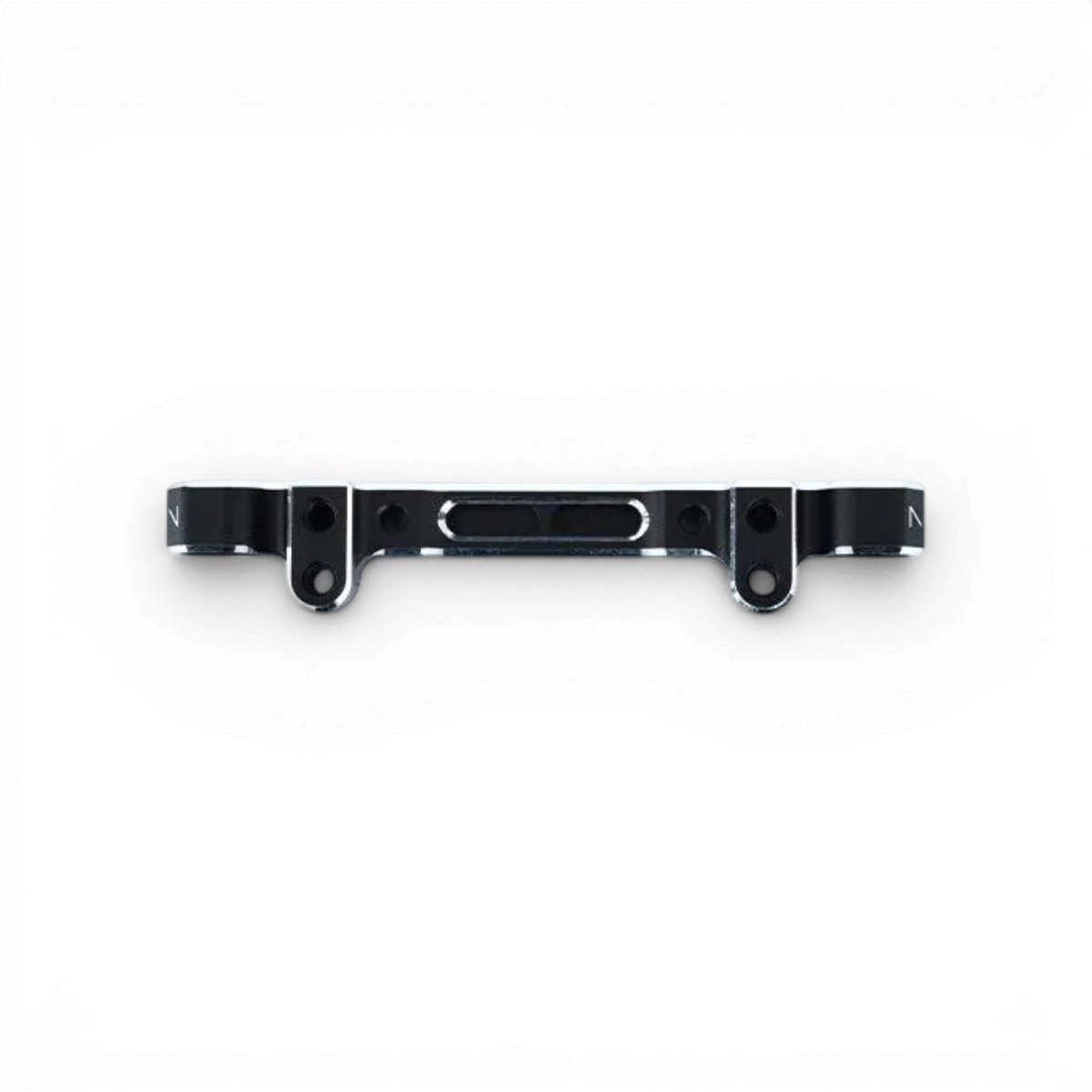

• Design [TK type] : Has two mounting holes for ball joint tips on the upper surface of the suspension support.

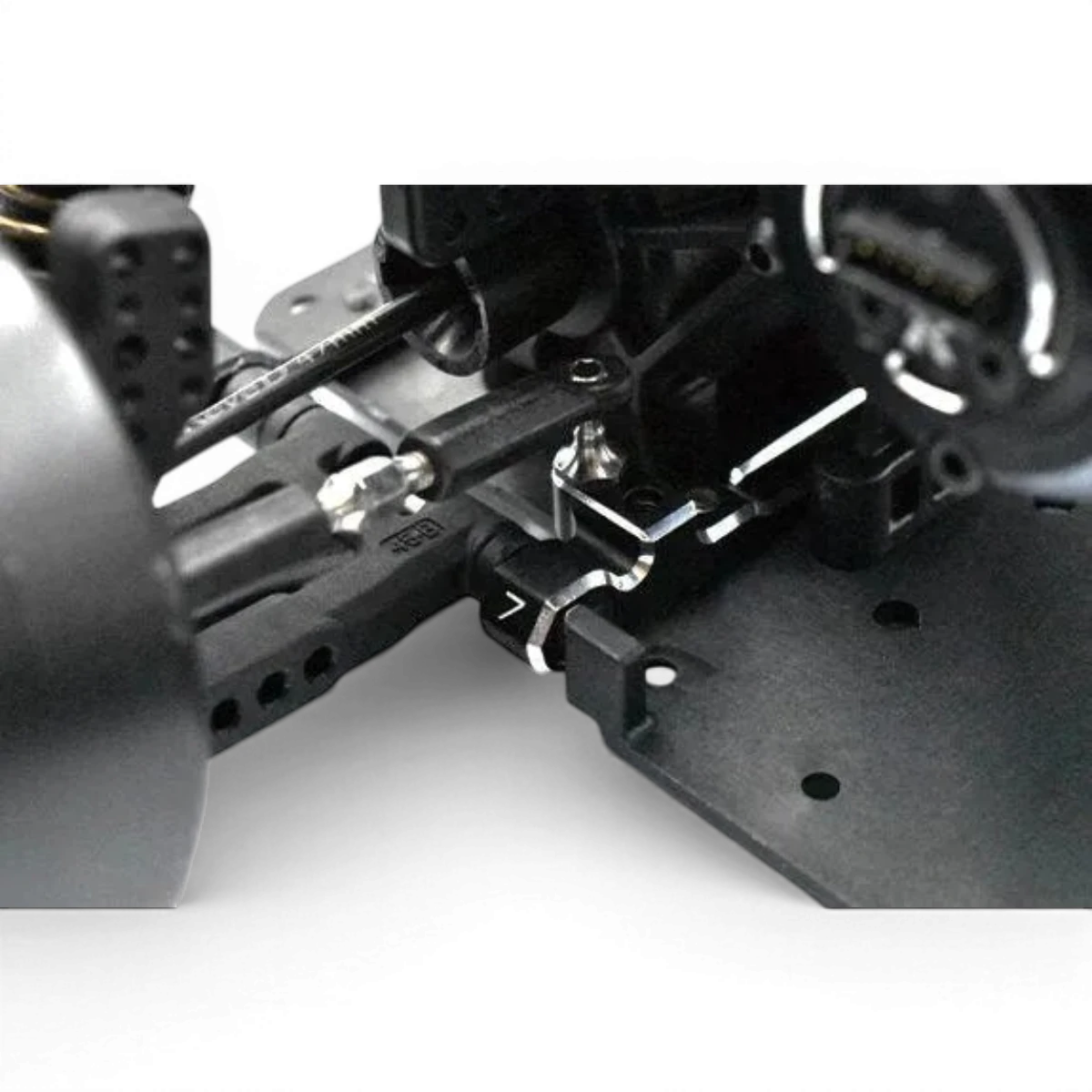

• Rear upper arm fixing : The rear upper arm is attached directly to the suspension support, creating a direct sensation in the movement of the rear suspension.

• Improved traction and control : This design spectacularly improves traction and control performance.

• Lightness and rigidity : Aluminum supports are designed to be light while offering exceptional rigidity.

• Precision and stability : High rigidity makes it possible to maintain stable and precise alignments, even under driving charges, thus offering a stable traction.
